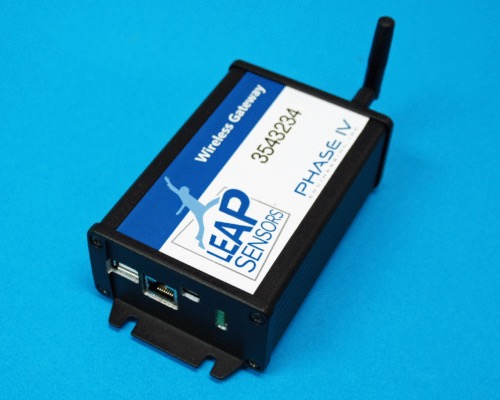

Industrial Grade Wireless Sensor Gateway, USB Connection

Wireless gateway receives the sensor data over the air from the Leap wireless transceiver nodes, then passes the data to the Leap software.

This version connects to a PC via a USB cable. By changing the software configuration, it may be connected to a Local Area Network via an Ethernet Cable.

The Leap web-based User Interface and database software run on a powerful single-board computer inside the gateway. Just plug in the gateway, open a web browser, log-in, and you are ready to interact with your Leap Wireless Sensor system.



Part of the breakthrough Leap Sensors® system.



Build your quote here:

SKU: LGE0-EN Category:

Description

Leap Sensors are specially designed to easily adapt to your specific needs. If this isn’t exactly what you need, please contact us.

Wireless Gateway with USB Connection Specifications

This USB to PC configuration is useful when the Leap wireless sensor system is to be monitored by a PC – and not on a cloud server or local server.

  • PC Connection: USB Cable
  • Gateway Power: 1 Amp wall transformer connected to the Leap Gateway with a standard barrel jack
  • On-Board User Interface: See the Leap Sensors User Interface page for more detailed information.
  • Operating Temperature: -20C to 85C.

Leap Gateway Overview

  • Leap wireless sensor gateways receive the data (over the air) from the Leap wireless sensor transceiver nodes. The gateway then passes the data to user interface software. Each gateway can support 250 sensors.
  • For web-based user interface software: the user logs into the password-protected software using any standard web browser, such as Chrome.
  • For server-based user interfaces (or cloud-based systems): the user interface is hosted on a server and the user logs into the server using a standard internet browser.
  • Need to get a better understanding of the different gateway options? See this comparison chart.

Customized Gateway Communication to Legacy Servers

  • Leap Gateways are easy to integrate with legacy IT systems. A powerful on-board computer can be customized to support any communication protocol (such as Modbus) to facilitate a quick and easy link to existing IT systems and software.
  • Leap Gateways also have an easy to implement Leap Gateway API that facilitates quick integration of sensor data into software applications.
  • The gateway on-board single board computer also offers many types of physical connections (USB, Ethernet, RS232, and others).
  • Contact us to learn more about how easy it is to integrate the data from the Leap Sensors system to your existing IT infrastructure.
