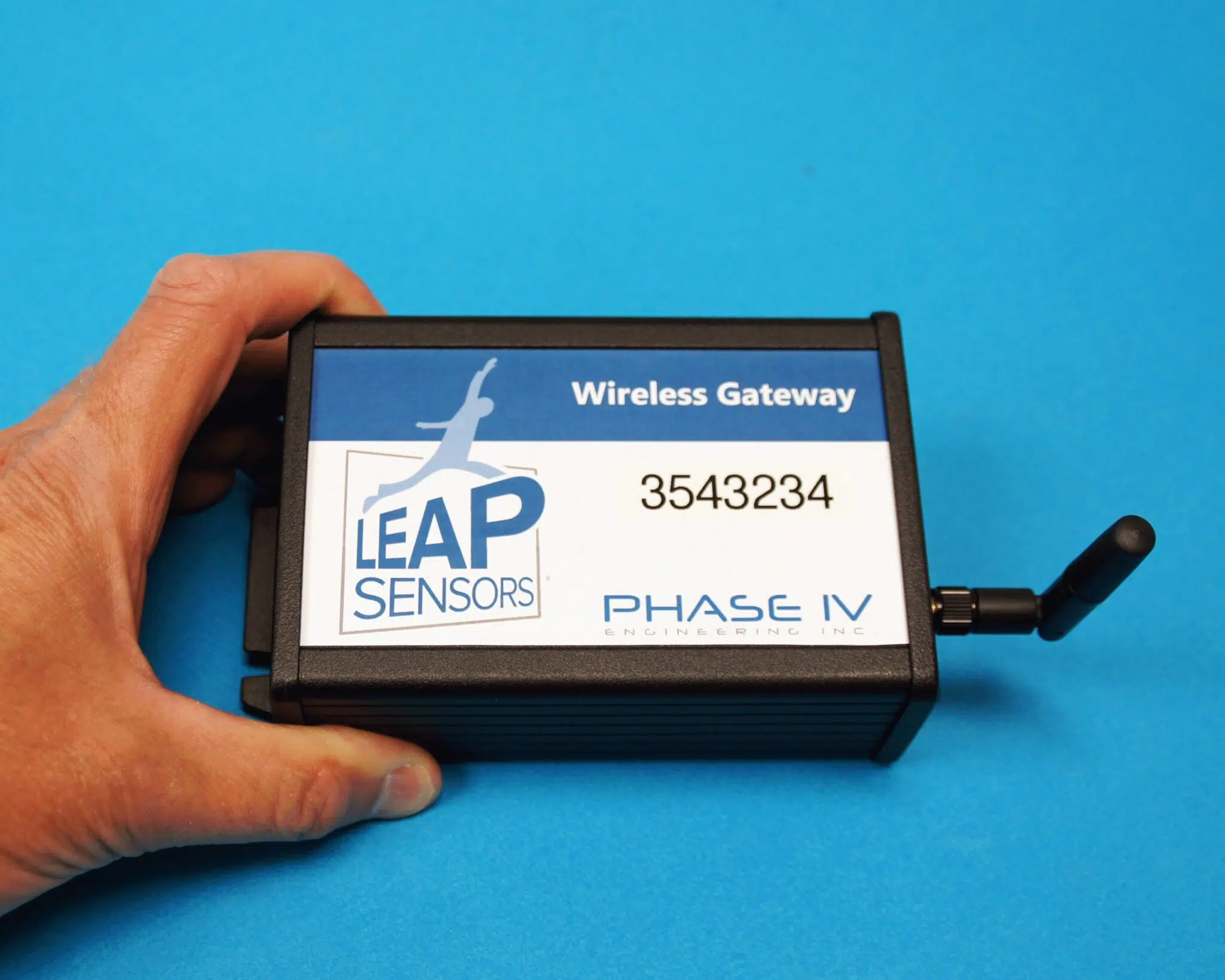

Wireless Sensor Gateway, Ethernet Connection


Wireless gateway receives the sensor data over the air from the Leap wireless transceiver nodes, then passes the data to the Leap software.

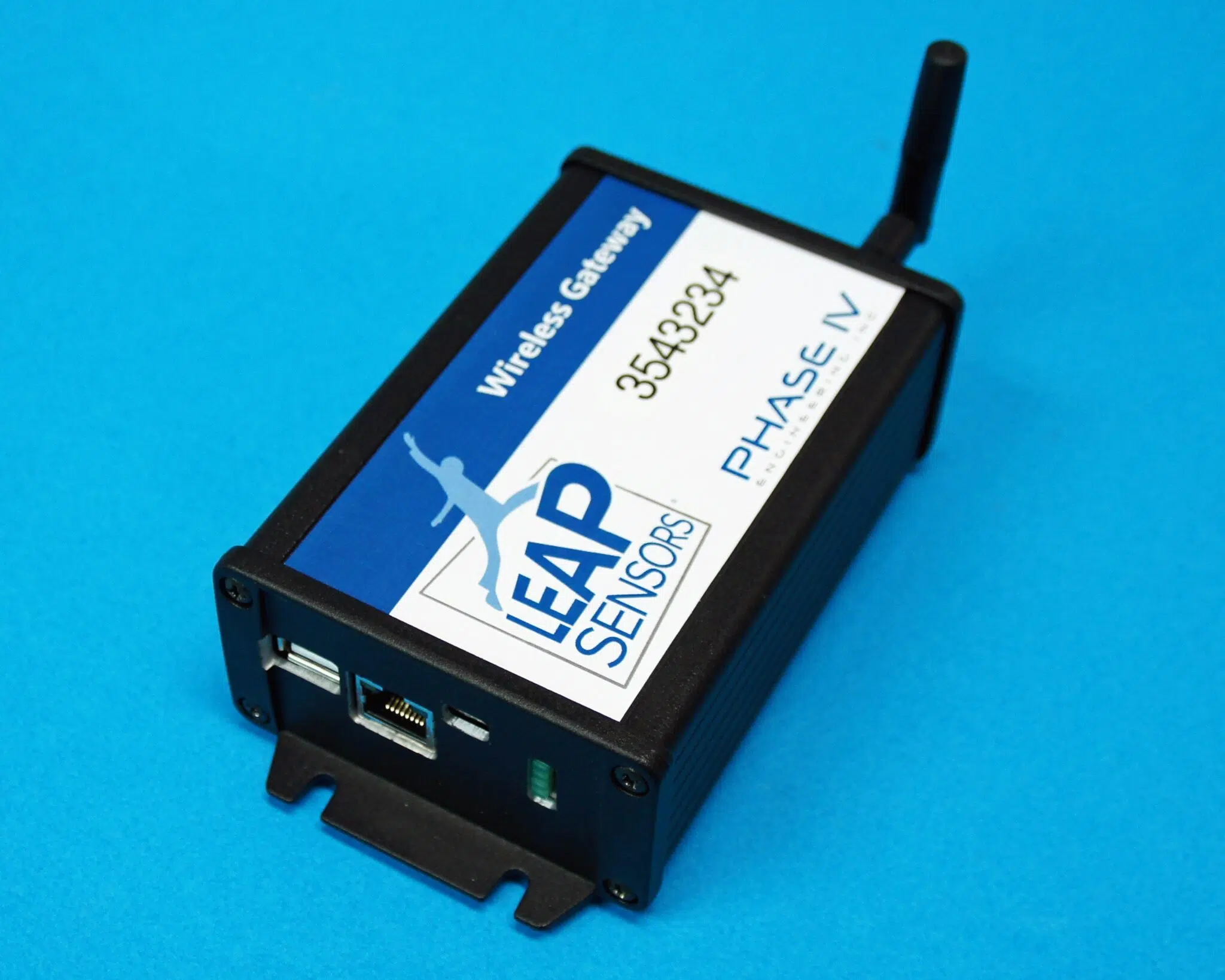

This version connects to a local network via standard Ethernet cable and RJ-45 connector.  When the software resides on the gateway, the software may also be directly accessed using the USB port on the gateway.

Easy to install – plug in the gateway, open a web browser, log in, and the Leap Sensors system is ready to manage.

Data Sheet


Part of the breakthrough Leap Sensors® system.


Build your quote here:

Add to Quote
SKU: LP-GW-EN Category:


Leap Sensors are specially designed to easily adapt to your specific needs. If this isn’t exactly what you need, please contact us.

Gateway – Ethernet Connection Specifications

This Ethernet configuration is useful when the Leap wireless sensor system needs to connect to a cloud server or local server. It is also effective when data needs to be passed to a legacy IT system via a customized protocol or data format.

  • Physical connection: Standard Ethernet connection – RJ-45 connector.
  • Gateway Power: 1 Amp wall transformer connected to the Leap Gateway with a standard barrel jack
  • Web-based server user interface:
  • Operating Temperature: -20C to 85C.

Leap Gateway Overview

  • Leap wireless sensor gateways receive the data (over the air) from the Leap wireless sensor transceiver nodes. The gateway then passes the data to user interface software. Each gateway can support 250 sensors.
  • For web-based user interface software: the user logs into the password-protected software using any standard web browser, such as Chrome.
  • For server-based user interfaces (or cloud-based systems): the user interface is hosted on a server, and the user logs into the server using a standard internet browser.
  • Need to get a better understanding of the different gateway options? See this comparison chart.

Customized Gateway Communication to Legacy Servers

  • Leap Gateways are easy to integrate with legacy IT systems. A powerful on-board computer can be customized to support any communication protocol (such as Modbus) to facilitate a quick and easy link to existing IT systems and software.
  • Leap Gateways also have an easy-to-implement Leap Gateway API that facilitates quick integration of sensor data into software applications.
  • The gateway on-board single board computer offers many types of physical connections (USB, Ethernet, RS232, and others).
  • Contact us to learn more about how easy it is to integrate the data from the Leap Sensors system into your existing IT infrastructure.

About Leap Sensors®

Better Design – Better Data – Better Decisions™

Based on Phase IV Engineering’s 30 years of wireless sensor experience, Leap is THE system designed from the ground up to meet the specific needs of industrial users. These sensors are a true leap advancement in Industrial IoT wireless sensing.

  • Modular design makes it easy & cost-effective to adapt to your specific needs – and update easily for a “future-proof” system.
  • Edge computing manages large amounts of data before transmission to software – only get information you need.
  • Bank standard data security: Multi-layered Thread network security using AES-128 data encryption.
