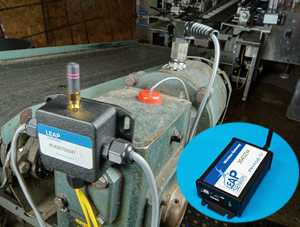

Your semi-custom Leap Demonstration Kit includes:

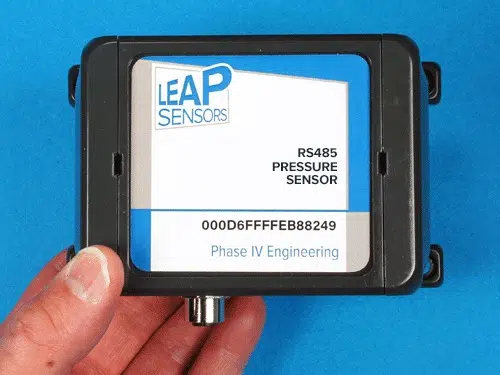

Leap Wireless Demonstration Sensors

• Standard “off-the-shelf” sensors on the demonstration transmitter – chose from:

  • Two thermocouples – External – K-type – range from -300C to 1800C.
  • One 4-wire-bridge input – for strain sensors and pressure sensors.
  • One 3-axis accelerometer – vibration, impact, tilt – cabled and magnetically mounted – 5KHz sampling and on-board edge data processing.
  • Humidity sensor – cabled to be mounted outside the sensor transmitter enclosure.
  • Switch or pulse input – common outputs for flow meters.
  • Analog sensor input – supports a wide range of sensors – choice of:
    • 4-20 mA input – supports a wide range of industrial sensors – powered by the Leap Wireless Sensor.
    • 0-5V DC analog sensor input.

• Customized sensors can be traded out for the ones above:

  • Precision temperature sensors – RTD, PRT (instead of the strain sensor above).
  • Electric power amp clamp – fast to install electrical current sensing. Ideal for monitoring motors for health and overloading. Monitor power usage. Uses the analog input.
  • Voltage sensors – AC and DC – configured to voltage range.
  • Digital I2C inputs support for a wide range of sensors  – Water/flood, light, fluid level, motion, etc.
  • Multiple sensors of different types on a single long-length cable can be implemented with a high-reliability CAN bus option.

• Each demonstration sensor transmitter supports about 5 sensors – Multiple sensors per transmitter lowers the price per sensor.

• 250F (120C) extreme operating temperature – The ONLY wireless sensor with a industrial temperature ratings for electronics, battery, and enclosure.

• Industrial sensor transmitter enclosure

  • Main enclosure 2.0 x 1.7 x 1.4 (h) inches. Mounting flanges extend the width to 3.2 inches.
  • Rugged industrial Polycarbonate (UL94-HB), Light Grey, -40℃ to 120℃.
  • Sealed and rated for resisting water jet spray – IP65.

• 2.5 GHz DSSS radio for wireless communication in industrial environments.  802.15.

• Antenna range from 500 to over 3000 feet* in open air.

  • *Internal antenna or external antenna for longer range.

• “Practically battery-free”™: Long-life battery lasts 8+ years in typical industrial monitoring applications.

• Miniature versions available as a special demonstration order – contact us.

• Cellular-connected sensors available as a special demonstration order – contact us.

 Don’t see what you are looking for? We can customize the demonstration kit or often we can adapt an existing design. Contact us.

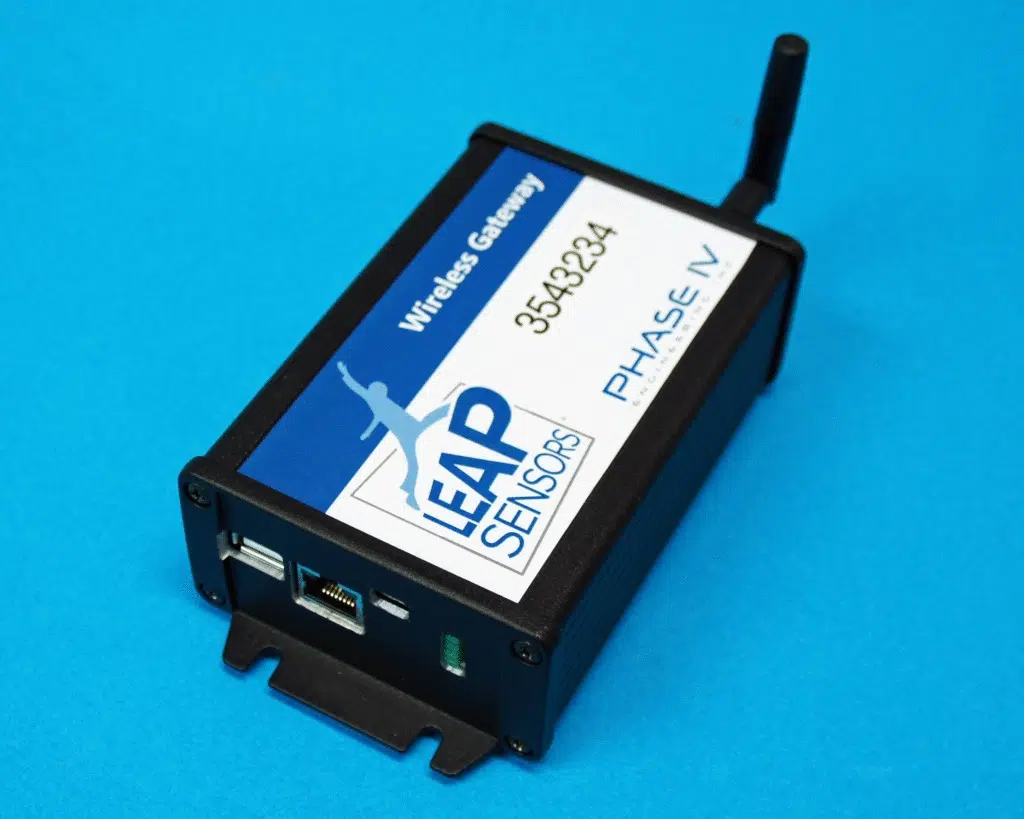

1 Gateway – Data Receiver

• USB connection to PC computer – powered by USB port. Standard option with demonstration kits.

• Leap cloud server option with the Ethernet or Cellular connected Gateway. Coming soon.

  • Set email and text alerts.
  • Connect to the User Interface on any web connected device with any web browser.

User Interface Software

• Web-based demonstration user software hosted by a mini web server inside the gateway. No software to download or install. Connect with a USB port and web browser with any type of computer to:

  • Monitor the sensors
  • Change sensor sample intervals
  • Change transmit timing

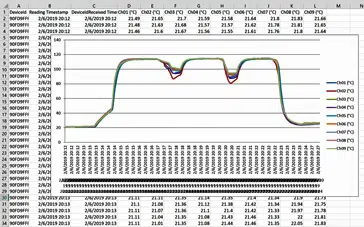

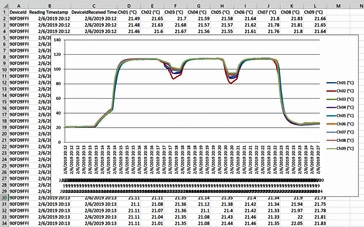

  • Download data

• Leap Cloud Server option with the Ethernet or Cellular connected Gateway. Coming soon.

• Other user interface and data-passing options available on the complete Leap Sensor System.
