Industrial Grade Wireless Temperature Sensor System for Ultra-Low Temperature Freezers

Wireless Ultra-Low Temperature Freezer Sensor Specifications

• Temperature Probe Range: calibrated at the target temperatures of -80C, -65C, and +5C.
  • Note: This temperature sensor is equipped with an stainless steel shield that is good from -50°C to 280°C. To avoid damage to the cable shield, do not bend the cable when it is below -50C.
• Temperature Accuracy (typical): +/- 1.0C in the calibrated range.

Features

• Fast and easy installation with the hook and loop and foil stickers. Special adhesive sticks cold surfaces.
• Cable: 6 feet long total length, including 3 feet of cable rated for ultra-cold temperatures. Optional 6-foot long cable where the 3 feet of cable connecting to the transceiver node enclosure is regular industrial cable that is not rated for ultra-cold temperatures and the last 3 feet are rated for the -80C ultra-cold temperature.
• Probe: Stainless steel 1.2 inches long x 0.16 inches in diameter.

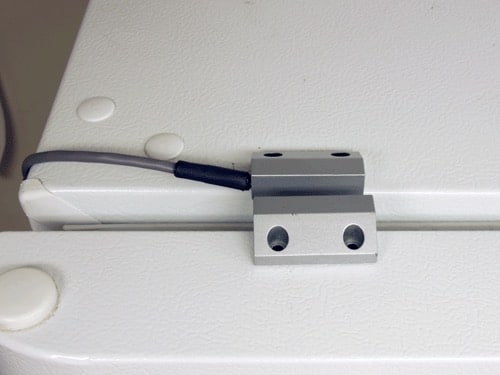

• Industrial door-open sensor (optional) transmits every time door is opened, streamlining tracking as well as helping to troubleshoot temperature alerts. Simple installation assures long-term reliable operation.

This wireless sensor is ideal for monitoring:

• Ultra-low temp (ULT) freezers (-80C)

Patents pending.
