Wireless Temperature Sensor Eight Thermocouples – Leap Sensors

Coming Soon

This Leap wireless sensor has eight standard mini thermocouple connectors that can connect to any type of thermocouple (type K is standard).

Because thermocouples can be used over a wide temperature range and thermocouples come in a huge range of probe types, this sensor addresses many harsh industrial applications.

Data Sheet



Contact Us

Prices, Quotes, Questions...

Need a price or a quote? Have questions? Want to talk to an expert? Need a custom solution?
Contact Us

Description

Eight Thermocouple Wireless Temperature Sensor

Leap Sensors are specially designed to be customized.  If this isn’t exactly what you need, please contact us.

Detailed Specifications – Wireless Thermocouple (all types) Sensor – Eight Thermocouples

This highly versatile industrial sensor supports a huge variety of plug-in thermocouple temperature sensors.

Overall Temperature Accuracy

Please note that the overall temperature accuracy is a combination of the electronics and the thermocouple that is connected to the Leap Sensor.  Since the thermocouple is typically selected by the end-user, an overall accuracy of the final system cannot be stated.  Below is information on the accuracy of the Leap Electronics and additional general information on the accuracy of thermocouples.

Thermocouples are popular in many industrial applications due to their wide variety and wide temperature range.  The are not highly accurate and are typically used for monitoring applications and not for precision temperature measurements.   For higher accuracy temperature measurements, see the Leap RTD temperature sensors.

Thermocouple Electronics Specification

  • Electronics reads from -210C to 1800C*.
  • Resolution is 19-bit or 0.0078125C.
  • Electronics accuracy is +/-0.15%*.
  • Types supported: B, E, J, K, N, S, R, T – different types may be configured to one transceiver node.

*Overall accuracy is a combination of the electronics and the thermocouple that is used.  See more information below.

Typical Thermocouple Sensor Specifications

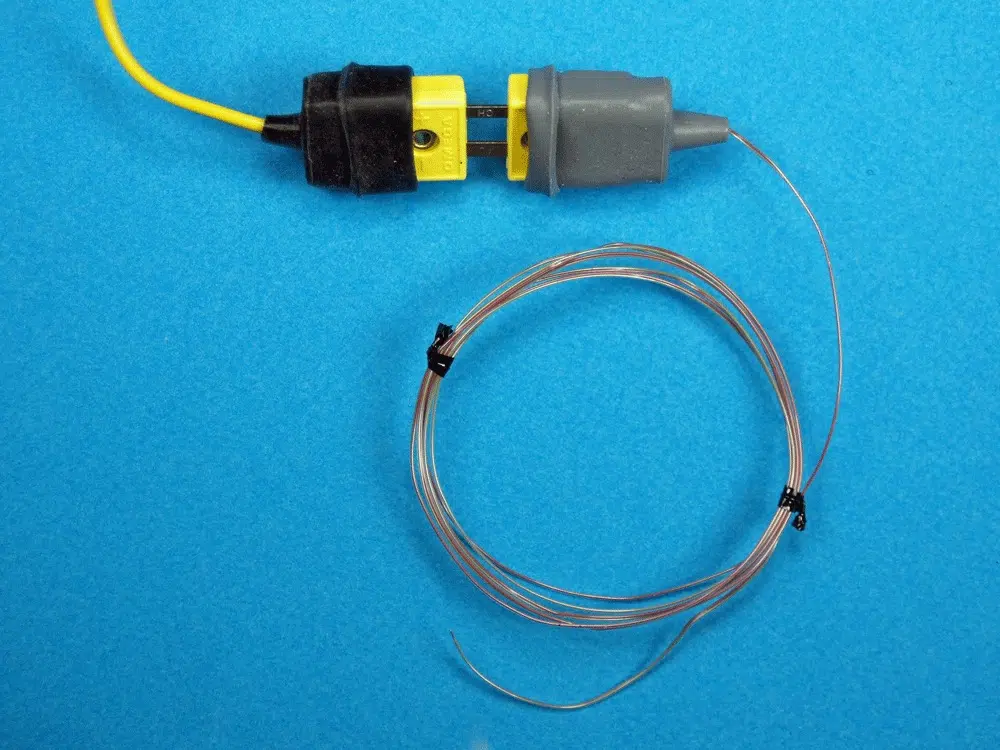

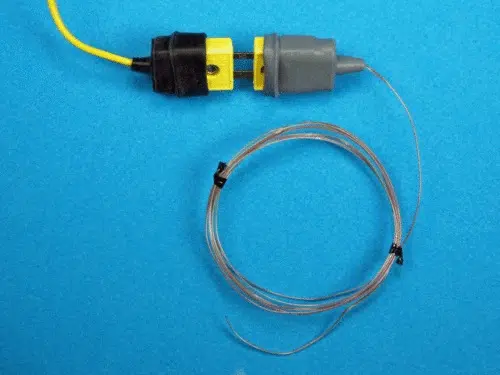

  • Connect 2 K-type thermocouples using standard Omega miniature flat pin connectors.  (see photos)

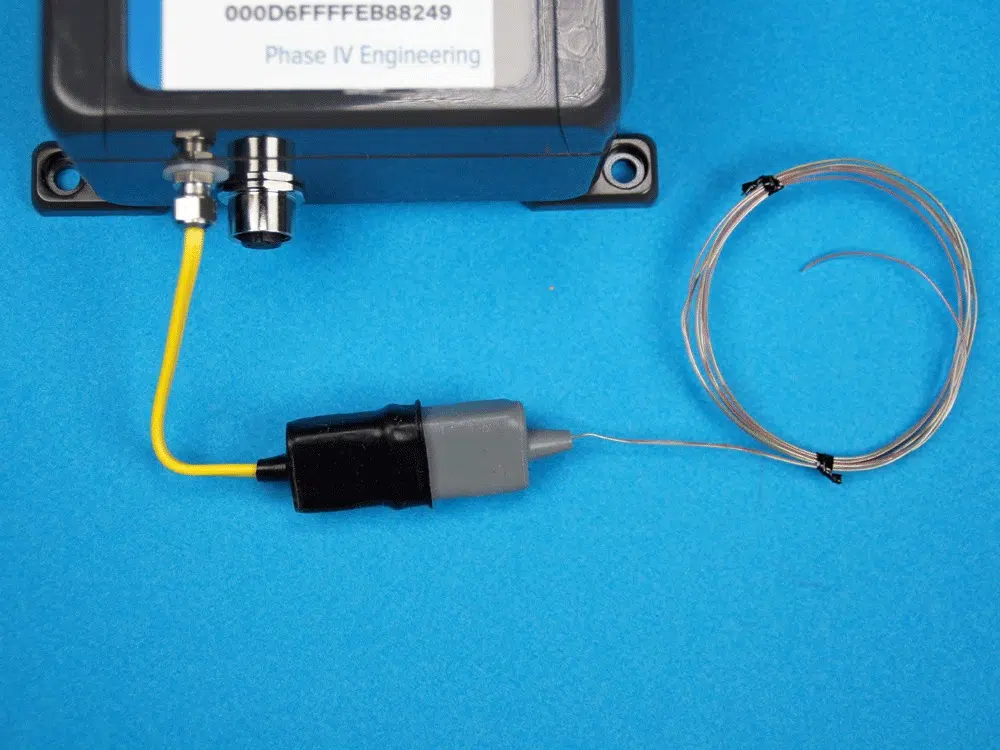

    • Connectors come with protective rubber boot.
  • Sensors come with basic insulated thermocouples similar to the Omega 5TC series.
  • Select your own thermocouple from a huge variety of options.  See thermocouple options from Omega.
  • Thermocouples have different temperature ratings – but different versions can operate in the range of –454 to 2,300F (–270 to 1260C).
    • The Leap Sensor transmitter module (electronics, enclosure, and battery) can operate up to 85C, or 120C by special order.
    • Electronics set for thermocouple range of -210C to 1800C (-325F to 3250)F.
  • Standard Type K Accuracy – see accuracy details on Omega Thermocouple web site.
    • Leap Sensor Thermocouples are compensated for non-linear thermocouple characteristics at cold temperatures – to ensure accurate readings at cold temperatures.
  • Cold junction compensation is on the Leap Sensor circuit board.

High-Value Features Unique to the Leap Wireless Sensor Product Line

These sensors are a true leap advancement in IoT industrial wireless sensing.

Typical Industrial Wireless Sensor Applications

This wireless sensor is ideal for monitoring:

  • Glass manufacturing monitoring
  • Glass molding monitoring
  • Bearing temperature wireless sensor
  • Heater monitoring
  • Motor temperature monitoring wireless sensor
  • Over-heating alerts
  • Industrial wireless temperature sensing
  • Coolers wireless temperature sensor
  • Remote location temperature monitoring
  • Temperature alarms – email alerts, text alerts

Patents pending.
