Temperature Micro-T RFID Data Logger, COLD Temperature -40°C to 80°C, 200 PSI, Miniature

1. We specialize in custom sensors. If this isn’t exactly what you need, please contact us.

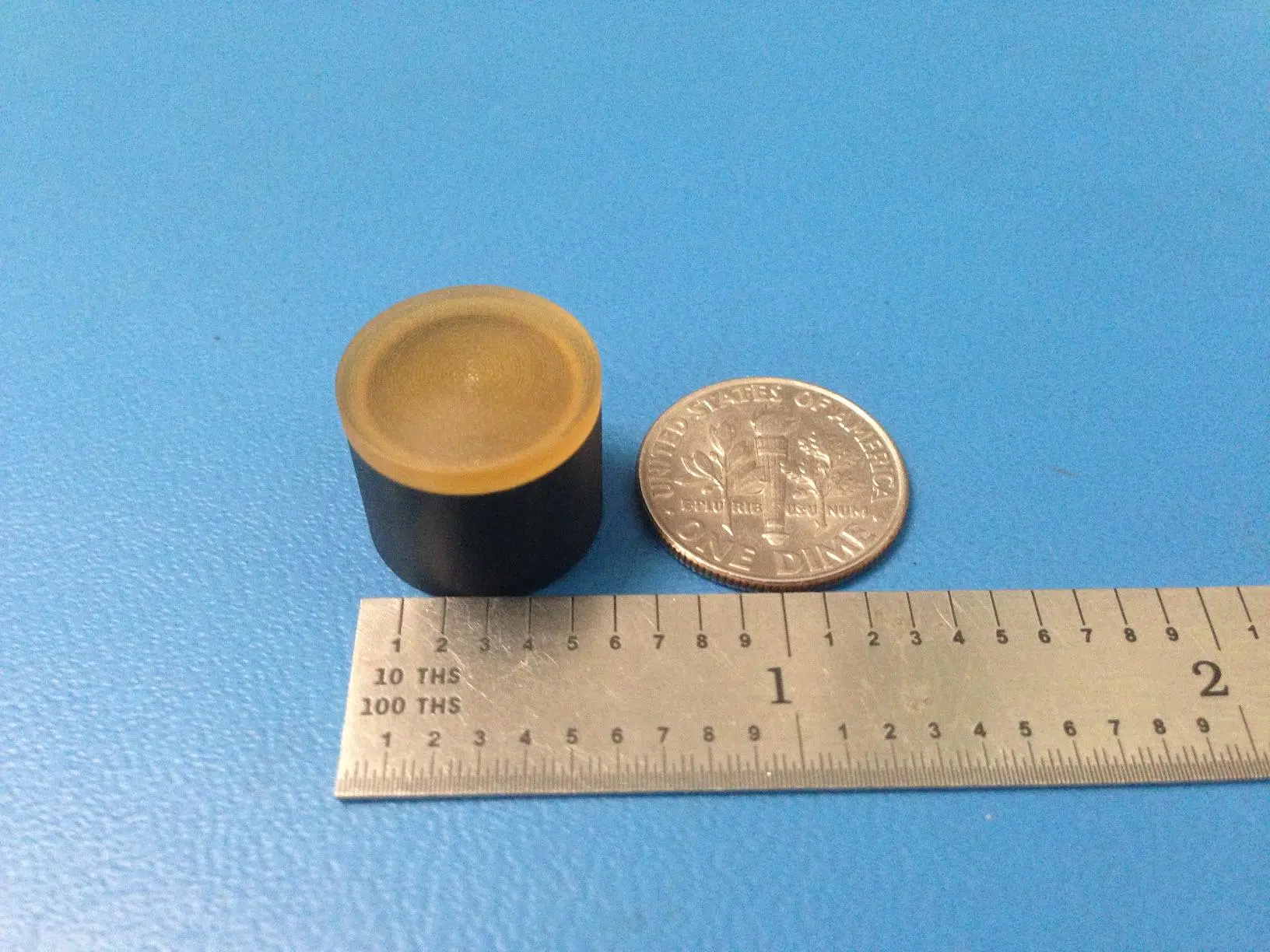

• Micro Miniature: small size and low mass enables accurate readings with minimal thermal impact on sensed environment. 17mm diameter X 15mm high.
• Food Safe—enclosure is made with FDA-approved plastic and is safe to use in food process monitoring.
  • Contact us for use in chemicals other than food or water for alternative chemical-resistant enclosures.
• Wireless interface—enables the Micro-T to be sealed & submersible.
• Wide Temperature Range — Cold Temp Version: -40°C to 80 °C (-40°f to 175 °F).
• Accurate— ±1.0°C within user-defined range;   ±0.2°C also available – contact us.
• High-Pressure Operation— 200 PSI.  Contact Us for higher pressure versions.
• Long Battery Life— ~1,000,000.
• Shelf Life – 4 months.
• User-configurable—sampling rates from 1 second to 48 hours.
• High Number of Records—stores 3,902 time-stamped records.
• Real-Time Clock— accurate time-temperature correlation.
• Simple Desktop Wireless “Reader” connects to PC with a USB cable.
• Software downloads data, stores in CSV or XML file, and graphs results.
• Rapid Response Time – see the graph in top left corner of this page.  Click on the graph to enlarge it.

*Battery life will vary with operating temperature, sensor type, and transmission interval.

This wireless sensor is ideal for monitoring:

• Measuring temperature profiles
• Retort monitoring
• Pasteurization monitoring
• Process verification
• Recording temperature
• Datalogging temperature
