Wireless Differential Pressure and Differential Temperature Sensor – Differential by Wireless Connection


This very unique wireless sensor works by comparing the readings from one device node to another user-selected device node – then reporting the local pressure, local temperature – then differential pressure and temperature as compared to a user selected sensor.

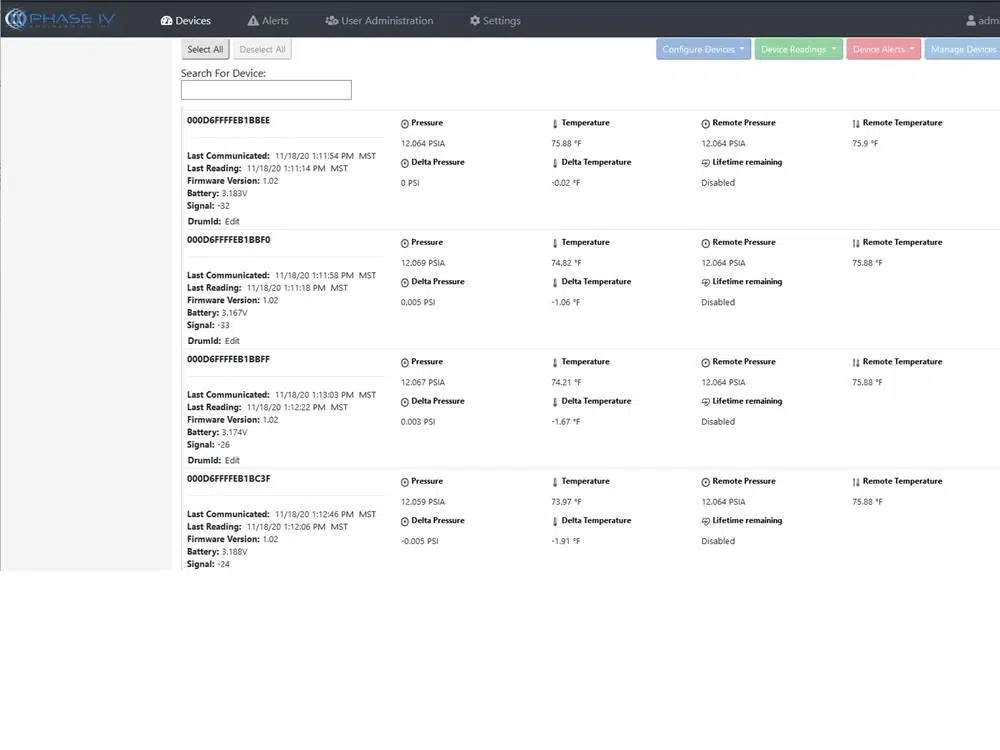

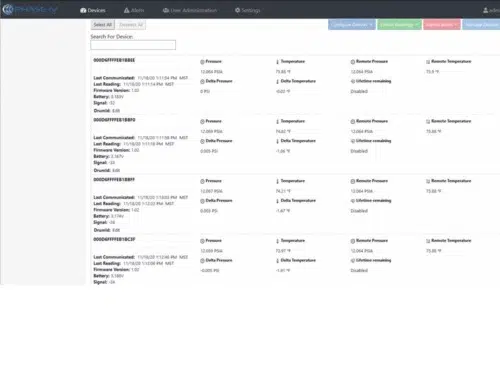

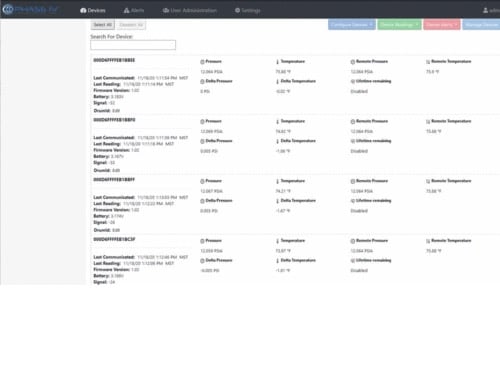

For example, sensor A is located outside at ambient temperature and pressure.  Sensor B is located in a clean room under positive pressure and Sensor C is located in a different part of the cleanroom under a higher positive pressure.  Sensor B could be configured to report its pressure and temperature and the differential pressure between Sensor B and Sensor A.  (See the screen shot).  Sensor C could be configured to report its pressure and temperature and the differential pressure and temperature between sensor C and sensor B.

Sensor readings are reported in PSIA.

Leverage the Leap SensorManager software to send text, email, or telephone alerts when a pressure, temperature, or delta-pressure or delta-temperature threshold is exceeded.

Integrate the data from the differential pressure sensors into other software using our web-based API, Modbus, DNP3, or other data interface protocols.

The wireless sensor can be configured with pressure sensors that have different ranges, resolutions, and accuracies for different applications. See the specification below for more information on the different options.

Pressure sensors can be configured to specific applications.  The pressure and temperature sensors in the photos have the pressure and temperature sensor sealed inside the enclosure with a pressure port in the back of the enclosure.

Data Sheet


Part of the breakthrough Leap Sensors® system.


Build your quote here:

Add to Quote


Leap Sensors are specially designed to easily adapt to your specific needs. If this isn’t exactly what you need, please contact us.

Differential Temperature and Pressure

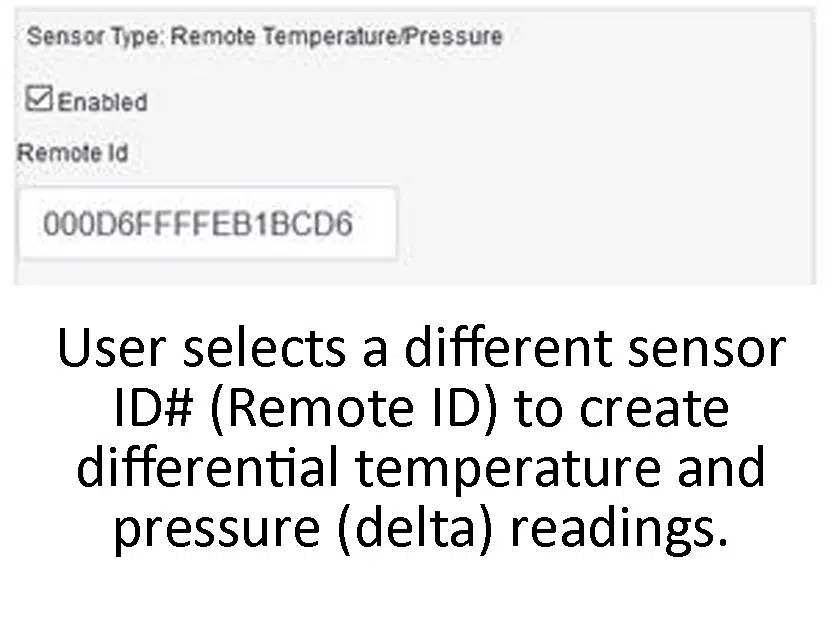

Each device node includes a temperature and pressure sensor.  For each device node, the user can use the software to select a different device node to calculate a differential pressure and temperature.

Pressure Sensor Specifications

  • 24 bit resolution
  • pressure range – specify to your application
  • -40C to 85C (-40F to 185F)

Contact Us to integrate an application-specific pressure sensor with the Leap Sensors wireless system.

Temperature Sensor Specifications

  • Range: -40C to 85C
  • Resolution: < 0.01C
  • Accuracy:
    • From 0 to 85C: +/- 2.5C
    • From -40 to 85C: +/- 5C

Contact us if you need higher accuracy than our standard product.

About Leap Sensors®

Better Design – Better Data – Better Decisions™

Based on Phase IV Engineering’s 30 years of wireless sensor experience, Leap is THE system designed from the ground up to meet the specific needs of industrial users. These sensors are a true leap advancement in Industrial IoT wireless sensing.

  • Modular design makes it easy & cost-effective to adapt to your specific needs – and update easily for a “future-proof” system.
  • Edge computing manages large amounts of data before transmission to software – only get information you need.
  • Bank standard data security: Multi-layered Thread network security using AES-128 data encryption.
Contact Us

Prices, Quotes, Questions...

Need a price or quote? Have questions? Want to talk to an expert? Need a custom solution?

Contact Us

This wireless sensor is ideal for monitoring:

  • Differential pressure between rooms
  • Differential pressure from ambient
  • Cleanroom monitoring

Patents pending.
