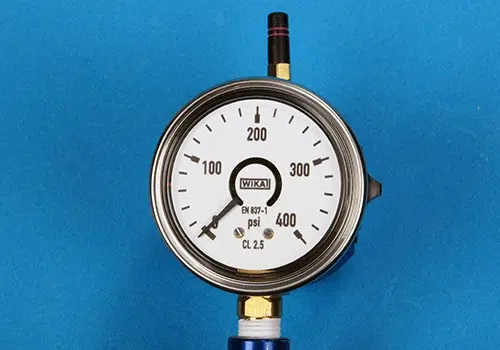

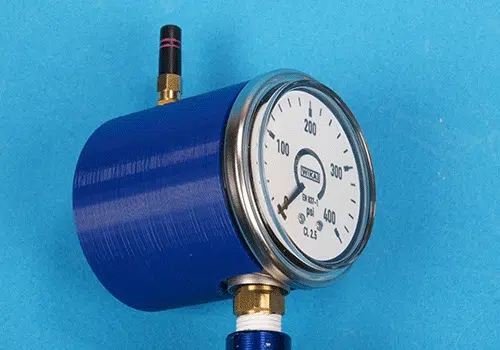

Wireless WIKA PGT21 Pressure Gauge
- Select a WIKA PGT21 mechanical pressure gauge and Phase IV will integrate it with the Leap Sensors system.
- 20+ bit resolution across the full range.
- Contact Us to integrate an application-specific pressure sensor with the Leap Sensors wireless system.
Leap Wireless Sensor Transceiver Node Specifications
- Transmission distance to gateway: typically 1500 feet in open air. Several hundred feet in an industrial environment.
- Battery
- Field replaceable 3.6V battery.
- Typical battery life of at least 5 to 8 years. Replaceable in less than a minute.
- Rugged sensor enclosure
- Long-range antenna inside the enclosure: Keeps the total footprint small and prevents damage to the antenna.
- Industrial power switch: Latching.
- Operating temperature: Standard sensor -40C to 85C (-40F to 185F).
- 2-way communication with the sensor through the user interface:
- Name the sensor (device), set sensor sampling time interval, set wireless transmit time interval, over-the-air firmware updates.
- Gateways send an acknowledgement to the device that the data was received for high reliability.
- Sensor data logging: When sensors do not receive an acknowledgement from the gateway that the radio transmission was received, the sensor will store the time-stamped data on-board (up to 10,000 readings) until the gateway connection is established.
- Reliable industrial over-the-air radio communication
- Industry-standard 802.15.4 with Direct Sequence Spread Spectrum (DSSS).
- Gateway “handshake” acknowledgement of successful transmission and sensor data logging for extra reliability.
- Over-the-air protocol: Standard and established 6LoPan and Thread.
- Data security: “gold standard” internet security with AES encryption.
- FCC certified.
Leap Wireless Sensors Gateway (Receiver) and User Interface Software
- See the Leap Sensors gateway page and the Leap Sensors User Interface options page for more detailed information.
- Leap Sensors wirelessly transmit data to a gateway*.
- Gateway can support over 60 sensors that are in range. (Additional gateways can extend sensor coverage.)
- The gateway then passes the data to the Leap user interface software. The user interface software may be hosted on the gateway (and connected to a PC with a USB cable), on the password-protected Leap Sensors Cloud web site, or an on-site server.

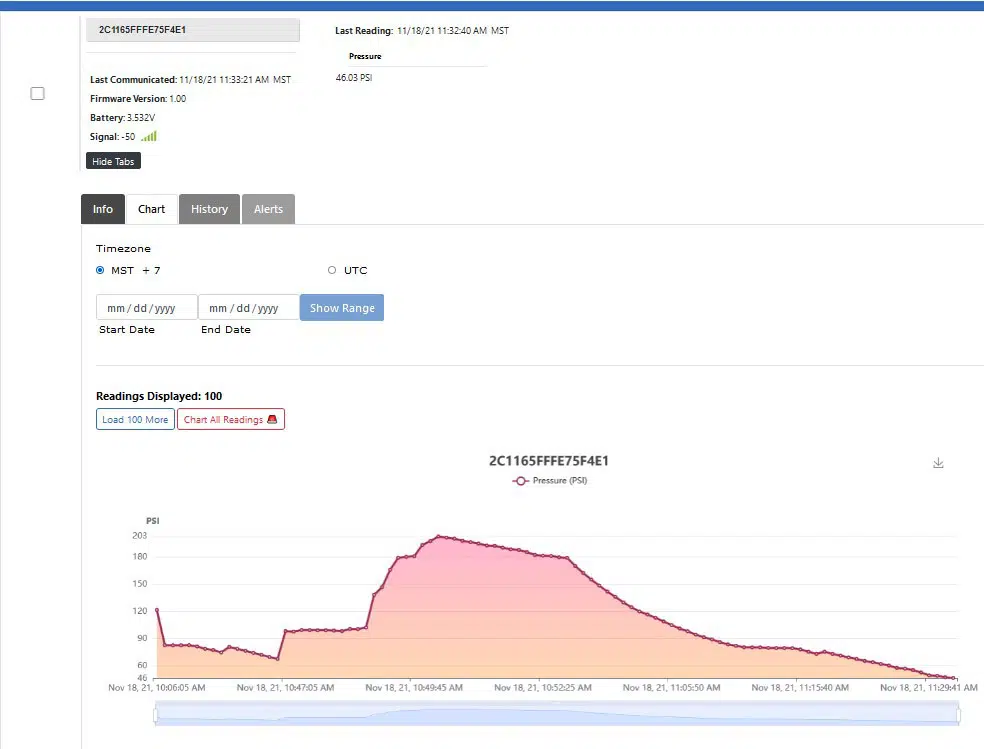

- User interface supports: logging-in, set user rights, view sensor data, set email and text alerts (cloud version), graph sensor data, download data to excel, add or subtract sensors, update firmware, and other functions.
*Custom-ordered leap sensors are available with a direct-to-cellular option where no gateway is needed and the data is sent directly to a cloud server. Contact us for more information.
This wireless sensor is ideal for monitoring:
- Pressure sensors
- Gas tank monitoring
- Compressed Air
- Water pressure
Patents pending.
