Industrial Grade Wireless Universal Multisensor Node

A true leap advancement in wireless sensing, our multisensor node will support large number of sensors of different types on one Leap transceiver node.

  • Select the combination of sensors that are needed for your application.
  • Universal design platform means cost-effective prototyping, low-volume sensor production, and short design lead times.
  • Monitor several sensors at one location on a machine.
  • Multiple sensors per sensor node is more cost-efficient.


Part of the breakthrough Leap Sensors® system.

Contact us for an exact quote to your specific application.

Build your quote here:


Leap Sensors are specially designed to easily adapt to your specific needs. If this isn’t exactly what you need, please contact us.

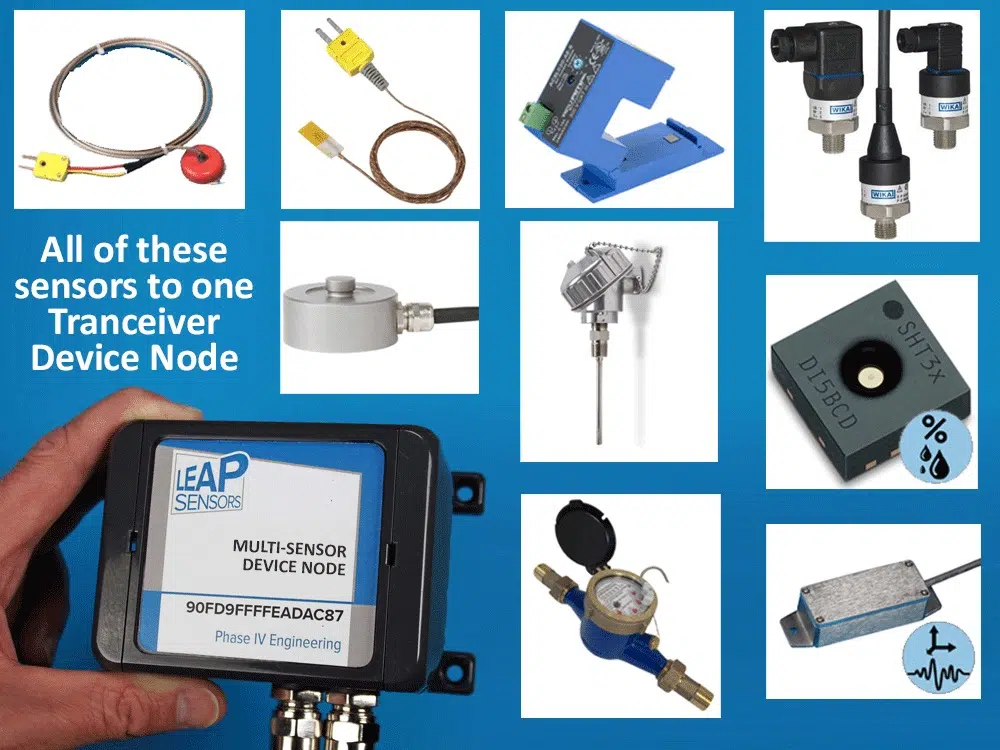

Multisensor Options

To provide exactly what you need, each Leap transceiver node may be configured with all, or a sub-set, of these sensing options:

  • Sensing Capability
    • 2 Thermocouples – electrically isolated, all types – K-type standard, high accuracy across a wide range of cold and hot temperatures.
    • Switch Input
      • Door open, pulse counter, flow meter, etc.
    • I2C Bus – multiple sensors
      • Pressure, humidity, dew point, temperature, magnetometer
    • Can Bus – Industrial and electrically isolated – up to 200 daisy-chained Sensors
      • Vibration – 5 KHz FFT Edge computing sensors
      • Integration of any type of sensor needed
    • Analog to Digital Converter – 24 bit, high precision, software controlled
      • Analog Input 1- with precision voltage reference
        • Strain – full bridge with software offset
        • Or, instead of strain, one of these…
          • 3-wire high-precision PRT temperature sensor
          • 2-wire PRT temperature sensor
          • Additional switch input
      • Analog Input 2 – with precision voltage refernece
        • 4-20 mA Input – Powered by Leap edge node battery
        • Pressure sensor, Current Transformer, etc.
          • Two 0-5, 0-10, 0-12 V Analog inputs – powered by Leap edge node battery
            • Pressure sensor, current transformer, load cell, etc.
          • Any analog output sensor
  • Outputs
    • Displays – multicharacter
    • Warning lights
    • Buzzers
Contact Us

Prices, Quotes, Questions...

Need a price or quote? Have questions? Want to talk to an expert? Need a custom solution?

Contact Us

Patents pending.
