We specialize in custom sensors. If this isn’t exactly what you need, please contact us.

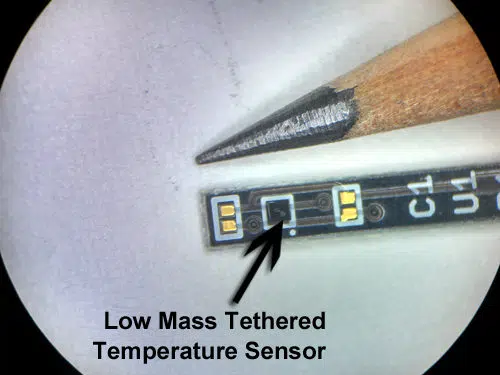

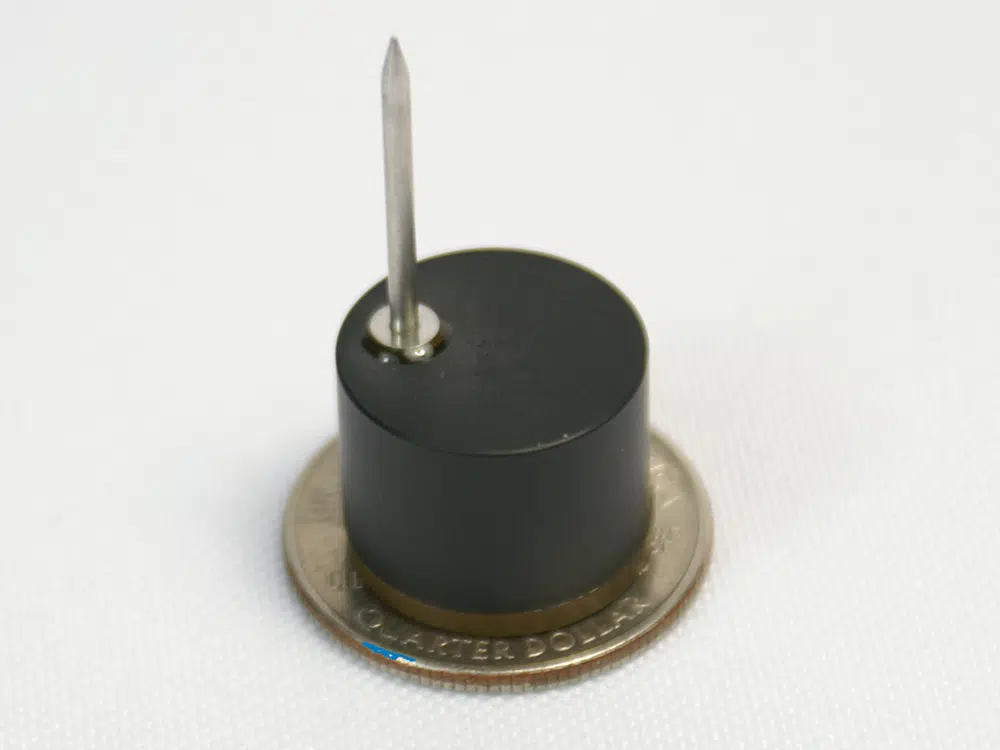

- Micro Miniature – small size and low mass enables accurate readings with minimal thermal impact on sensed environment. 17mm diameter X 15mm high.
- Food Safe—enclosure is made with FDA approved plastic and is safe to use in food process monitoring.
- Contact us for use in chemicals other than food or water for alternative chemical-resistant enclosures.
- Wireless interface—enables the Micro-T to be sealed & submersible.
- Wide Temperature Range — Cold Temp Version: -40°C to 80°C.
- Accurate— standard version ±1.0°C; ±0.2°C also available – contact us.
- Pressure Operation— 200 PSI.
- Long Battery Life— ~2,000,000 samples. 1.5 year shelf life.
- User-configurable—sampling rates from 1 second to 48 hours.
- High Number of Records—stores 3,902 time-stamped records.
- Real-Time Clock— accurate time-temperature correlation.
- Simple Desktop Wireless “Reader” connects to PC with a USB cable.

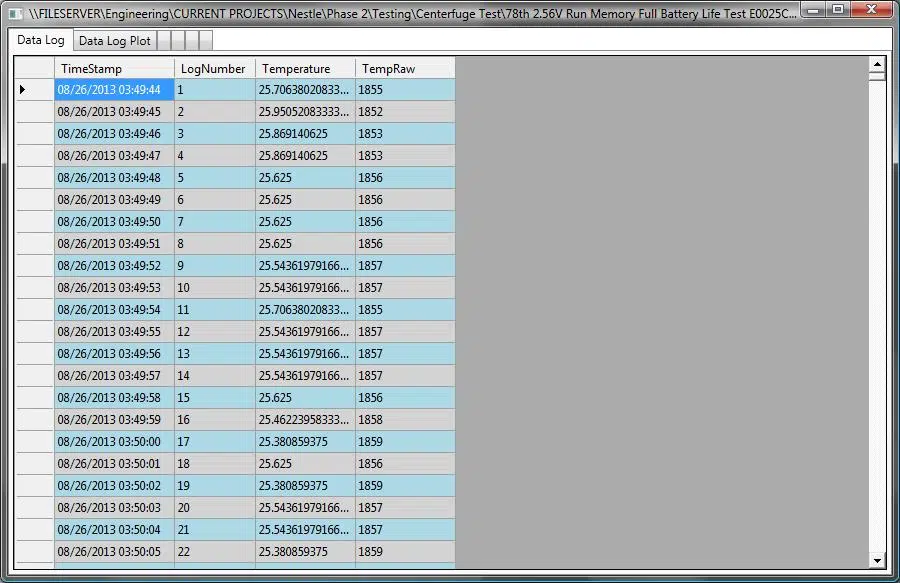

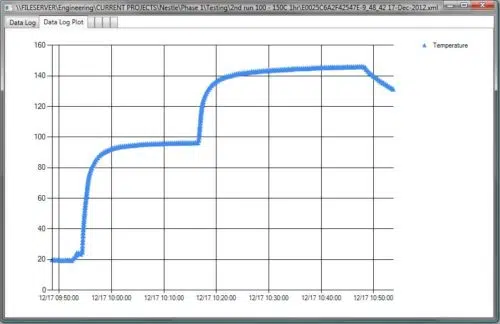

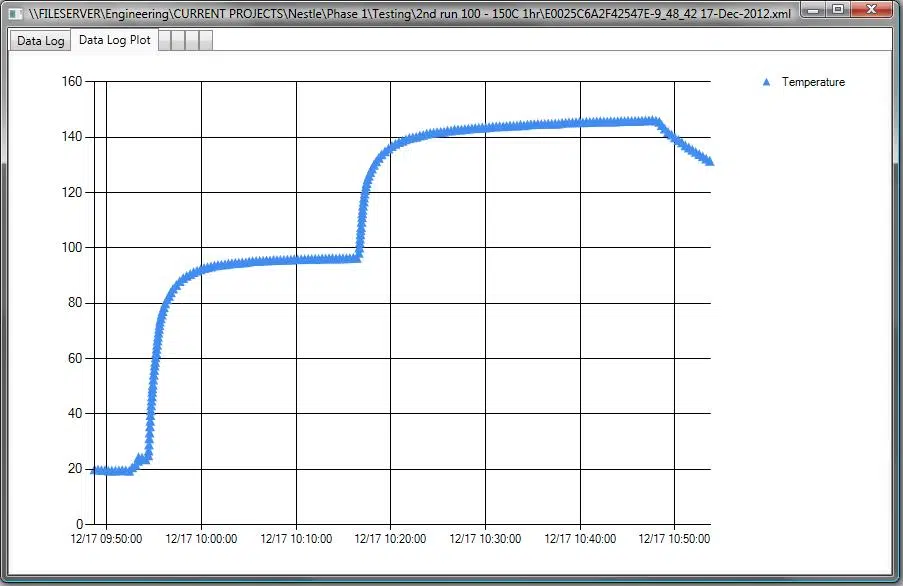

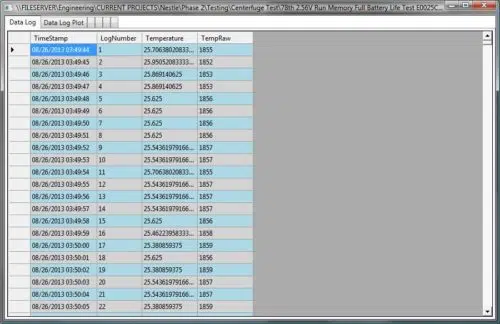

- Software downloads data, stores in CSV or XML file, and graphs results.

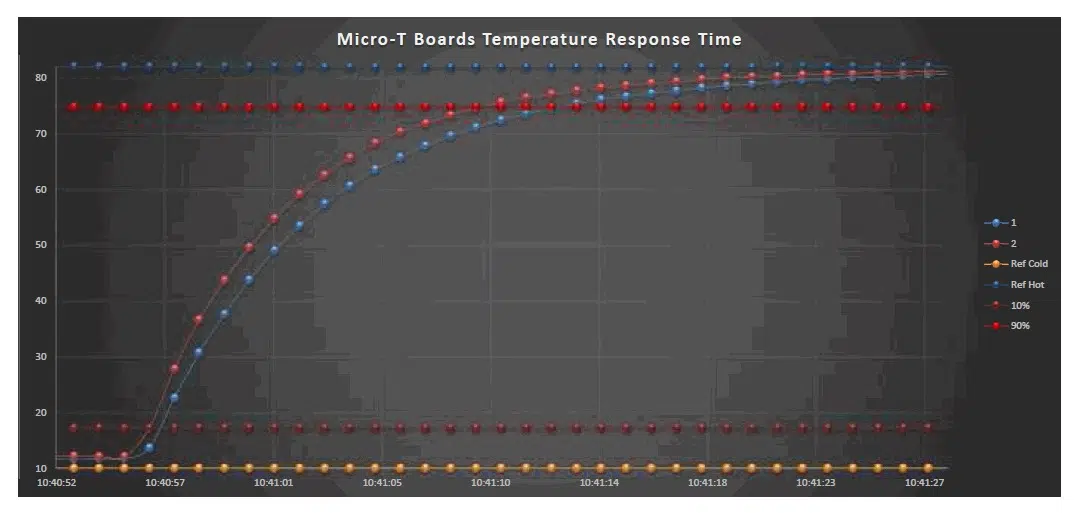

- Rapid Response Time – see the graph in top left corner of this page. Click on the graph to enlarge it.
*Battery life will vary with operating temperature, sensor type, and transmission interval.
This wireless sensor is ideal for monitoring:
- Measuring temperature profiles.
- Retort monitoring.
- Pasteurization monitoring.
- Process verification.
- Recording temperature.
- Datalogging temperature.
