Temperature Micro-T RFID Data Logger, 145°C, 200 PSI, Miniature

This sensor is designed data log temperatures up to 145°C at pressures up to 200 PSI.

See more information on the Micro-T Data Logger on the About RFID Data Loggers page.

We specialize in custom sensors. If this isn’t exactly what you need, please contact us.

Watch our video demonstration of the Micro-T

SKU: MCT-T1N1-1805-02 Category: Tag:


We specialize in custom sensors. If this isn’t exactly what you need, please contact us.

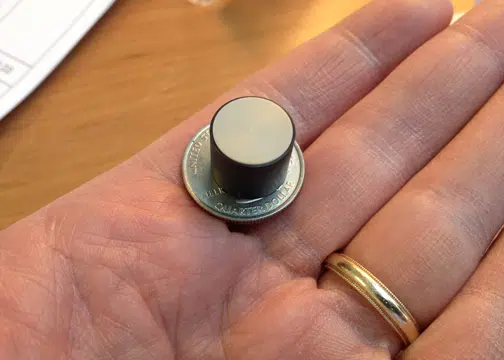

  • Micro Miniature: small size and low mass enables accurate readings with minimal thermal impact on sensed environment.  17mm diameter X 15mm high.
  • Food Safe—enclosure is made with FDA-approved plastic and is safe to use in food process monitoring.
    • Contact us for use in chemicals other than food or water for alternative chemical-resistant enclosures
  • Wireless interface—enables the Micro-T to be sealed & submersible.
  • Wide Temperature Range — High Temp Version:  0°C to 145°C.
  • Accurate— standard version ±1.0°C;   ±0.2°C also available – contact us.
  • High-Pressure Operation— 200 PSI.
  • Long Battery Life— ~2,000,000 samples. 1.5-year shelf life.
  • User-configurable—sampling rates from 1 second to 48 hours.
  • High Number of Records—stores 3,902 time-stamped records.
  • Real-Time Clock— accurate time-temperature correlation.
  • Simple Desktop Wireless “Reader” connects to PC with a USB cable.
  • Software downloads data, stores in CSV or XML file, and graphs results.

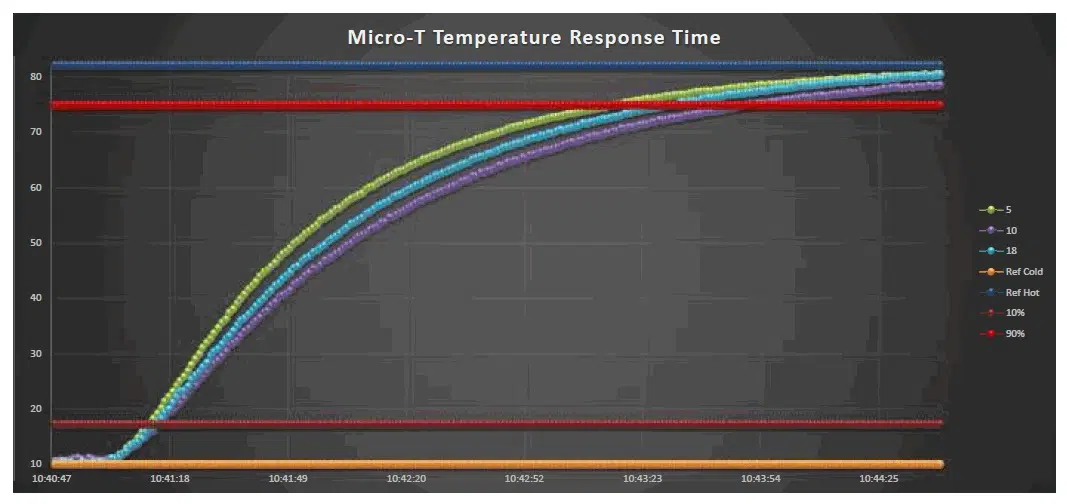

  • Rapid Response Time – see the graph in top left corner of this page.  Click on the graph to enlarge it.

*Battery life will vary with operating temperature, sensor type, and transmission interval.

This wireless sensor is ideal for monitoring:

  • Measuring temperature profiles
  • Process verification
  • Recording temperature
  • Datalogging temperature
