Temperature Thin Micro-T RFID Data Logger, 145°C Miniature With Tether

$1.00

CURRENTLY OUT OF STOCK – CONTACT US FOR AVAILABILITY

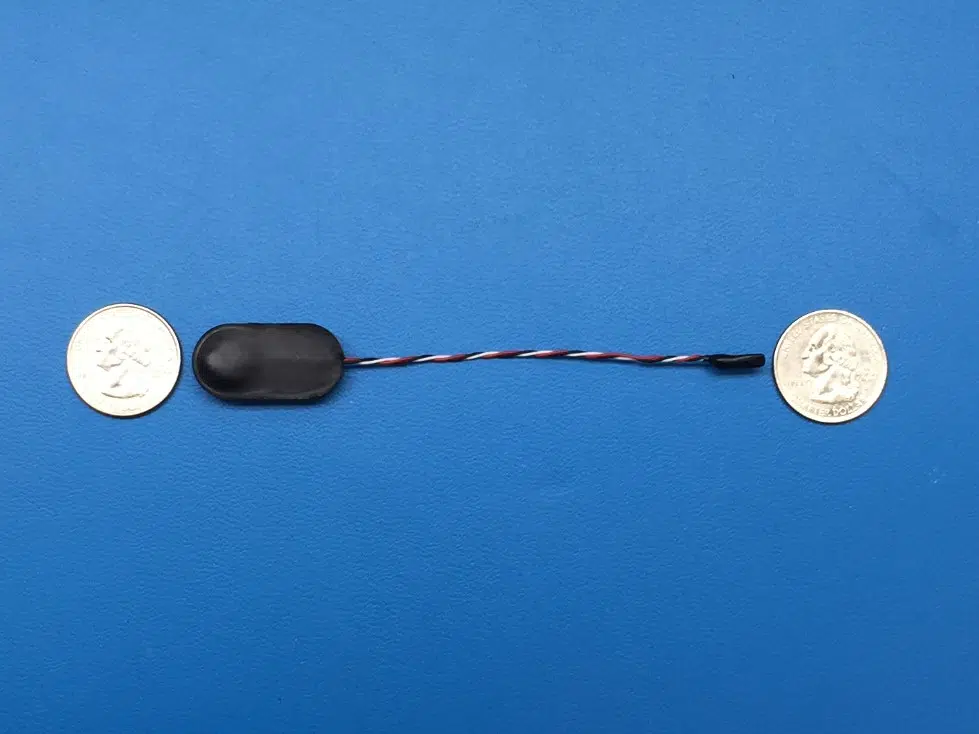

This sensor is designed for applications where a thin, high-temperature data logger is required. The ultra-small tethered temperature sensor has a very low thermal mass and can target specific monitoring locations away from the electronics and battery for temperature data logging.

See more information on the Micro-T Data Logger on the About RFID Data Loggers page.

We specialize in custom sensors. If this isn’t exactly what you need, please contact us.

Watch our video demonstration of the Micro-T

Add to Quote

Description

We specialize in custom sensors.  If this isn’t exactly what you need, please contact us.

  • Low Thermal Mass- small size and low mass enables accurate readings with minimal thermal impact on sensed environment.
  • Ultra-Thin – 0.55 in wide X 0.18 thick – at the widest points.
  • Tethered temperature Sensor – 2.5 inches from the interface circuit board to the temperature sensor.
  • Wireless interface—enables the Micro-T to be sealed & submersible.
  • Wide Temperature Range — High Temp Version: 0°C to 145°C.
  • Accurate— standard version ±1.0°C; ±0.2°C also available – contact us.
  • Long Battery Life— 2,000,000+ samples. Shelf life of ~1.5 years.
  • User-configurable—sampling rates from 1 second to 48 hours.
  • High Number of Records—stores 3,902 time stamped records.
  • Real Time Clock— accurate time-temperature correlation.
  • Simple Desktop Wireless “Reader” connects to PC with a USB cable.
  • Software downloads data, stores in CSV or XML file, and graphs results.
  • Rapid Response Time – see the graph in top left corner of this page. Click on the graph to enlarge it.

*Battery life will vary with operating temperature, sensor type, and transmission interval.

This wireless sensor is ideal for monitoring:

  • Measuring temperature profiles.
  • Process verification.
  • Recording temperature.
  • Datalogging temperature.
