Industrial Grade Thermocouple, K-Type, Magnetic


This popular K-Type Thermocouple uses a strong magnet to attach to ferrous (such as steel) surfaces. Comes with a mini connector to quickly plug in to Phase IV sensors.

Add to quote here:

Add to Quote
SKU: 29-100845-00 Category:

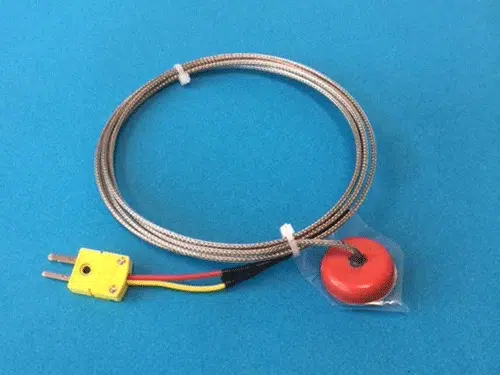

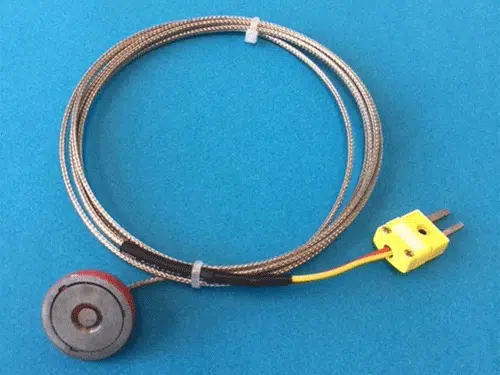

This versatile magnetic thermocouple is suitable for high-temperature measurements on ferrous surfaces up to a maximum of 572ºF. The sensor is supplied with 72” of stainless steel braided fiberglass insulated cable.
Comes with mini-K-Type connector – to attach directly to Phase IV’s Leap sensors.

  • Surface temperature measurement of ferrous materials
  • Thermocouple type K
  • Grounded Junction
  • Leads: 72” fiberglass insulated with stainless steel overbraid
  • Operating range: 14ºF to +572ºF (-10ºC to +300ºC)
  • Magnet Dimensions: 1.14” dia. X 0.33” thick
